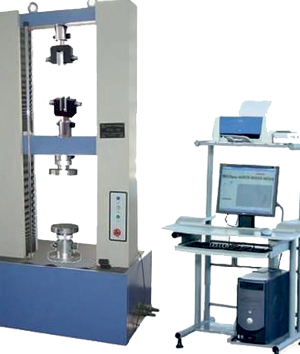

Universal Testing Machine (UTM)
This machine is suitable for adhesive tape, rubber, plastic, sponge, waterproof materials, electric wire & cable, textile, net rope, non-woven fabrics etc, nonmetal materials and metallic thread, metal foil, steel plate and metal rod to do tensile, compression, bending, peeling, cutting, tearing shearing tests. Customer specific testing machines and software can be designed and manufactured to suit special product dimensions, shapes, characteristics and results.
- Capacity: 5Kg to 100000Kg (100Ton)
- Resolution: 24Bit
- Displacement: 1500mm max
- Displacement Resolution: 0.001mm
- Type: Motorized/Hydraulic (Depend on machine capacity)
- Speed: Variable 0.01 to 500mm/min
- Automatic report generation with graphs Load vs Displacement, Load vs time and Displacement vs time.
- Manual and automatic mode with PC interface.
- Auto touch load detection.
- Closed loop control software give very accurate results due to its constant speed control at all loads
- Precision Ball-Screw ensures accuracy and repeatability.
- Interface Unit: High speed DSP based control unit for accurate measurement and control.
- Display: Graphics/ 7" Touch Screen TFT.
- Memory: 16GB Internal memory no need to connect PC in production. It can store complete report with graphs. Data can be retrieved through pen drive or PC.
- Connectivity: USB2.0 (standard), LAN/WiFi (optional).
- Burst mode data capture facility to record critical events of material (to check exact behavior of material failure).
- Our DSP based interface unit have facility to change capacity of load cell virtually so there is no need to change load cell for different capacity e.g. suppose you have machine with 1000Kg load cell you can change capacity to 10Kg on single click. This facility save cost and load cell damage chance due to human error (fit lower capacity load cell while running higher capacity test.
- We have different kind of other test machines like Torsion Test Machine, Spring Test Machine etc (single operation) with cyclic test facility.
