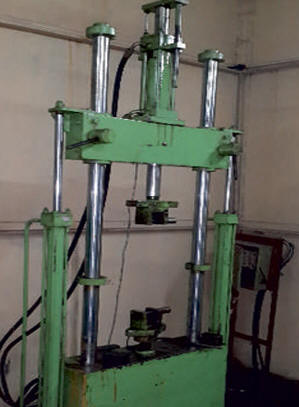

Shocker Testing Machine

Shocker testing machine is used to check maximum compression and rebound force of shock absorber. This machine can be used for cyclic or endurance testing of shock absorber. We are manufacturing this system with motorize actuator or hydraulic actuator according to shocker type, force, frequency and displacement.


  • Capacity: up to 6000Kg
  • Frequency: 0 to 16Hz
  • Displacement: 0 to 200mm
  • Displacement Resolution: 0.001mm
  • Load Resolution: 0.1Kg @ 5000Kg Load cell
  • Fully PC control operation

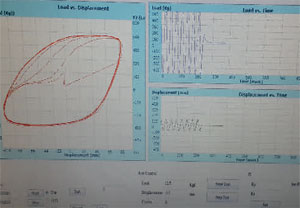

  • Automatic report generation with graphs Load vs Displacement, Load vs Velocity, Load vs time and Displacement vs time
  • Load frame with side jack.
  • High speed USB based interface unit with online upgrade facility
  • Inbuilt servo amplifier in interface unit.
