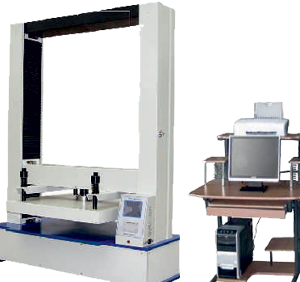

Box Compression Tester

Box compression tester is applicable in testing the compression endurance and stacking strength of corrugated carton. It is every parameters and performance conform to the standards of ISO12048 Packaging-Complete, filled transport packages- Compression and stacking tests using a compression tester.


  • Capacity: up to 2000Kg
  • Speed: 1 to 500mm/min (user adjustable) close loop control
  • Deformation Resolution: 0.1mm
  • Compression Distance: 1000mm maximum
  • Load Resolution: 0.01Kg @ 2000Kg Load cell
  • Connectivity: USB2.0
  • Automatic positioning of loading bar at the point where it just starts exert force.
  • Online display of force and displacement graphs on computer screen
